DNV 2.7-1 Offshore
Transportable Container

DNV 2.7-1 Offshore container INDIA manufacturer,DNV 2.7-1 baskets

DNV 2.7-1 Offshore Transportable Container

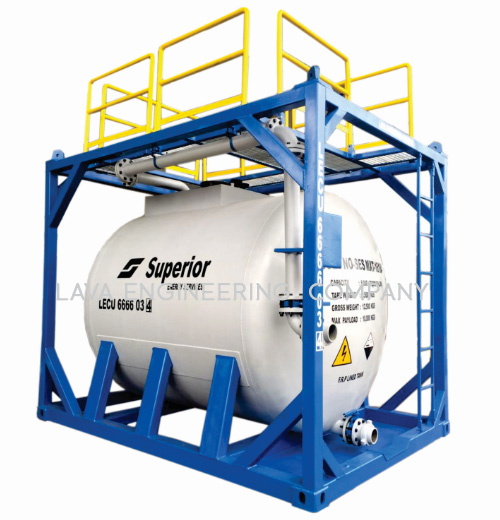

LAVA Engineering, DNV 2.7-1 Offshore tank manufacturer, supplies offshore UN portable tanks with DNV 2.7-1 (EN 12079), ASME VIII design standard to serve Oil and Gas Drilling and chemical companies. LAVA transportable Horizontal 2000 Gallon Acid tanks are used for safe transport and storage of wide range of liquids and are manufactured in Stainless or Mild steel with RUBBER lining / FRP lining / EPOXY Lining /LEAD Lining for Hazardous Acids like HCL, Sulphuric Acid and others.

LAVA 2000G tanks have full walkway and collapsible handrails to ensure at most safety during offshore operation. Two Lifting provision with DNV slings are provided, center lifting with DNV standard Lugs and the other corner lifting with corner casting. The liquid Discharge can be Top discharge or Bottom discharge as per client requirements


IMDG, DNV 2.7-1, EN 12079
DNV 2.7-1, EN 12079, Vertical Tank in Rectangular Frame
Vessel Design Code
2991 mm X 2438 mm X 2591 mm (h)
2000 USG Nominal (7600 Litres) (+/-3%)
Design Temperature
-20 C to +60 C
Lining Material
Rubber Lining, FRP Lining

Bottom – Type ISO Corner Casting on Bottom Corners
